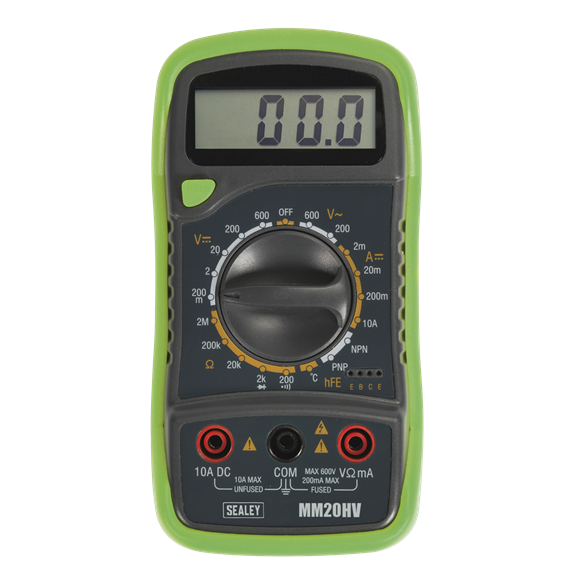

Sealey MM20HV 8-Function Hi-Vis Green Digital Multimeter with Thermocouple
Couldn't load pickup availability
Like this product? Share on social media!
CLEAR DISPLAY - General-purpose multimeter with clear and easy-to-read LCD display.
VERSATILE TESTING CAPABILITIES - Data hold function, temperature probe and diode test facility.
HEAVY-DUTY DESIGN - Housed in rugged rubber boot with integral stand.
EASY HOOK-UP - Supplied with full set of leads and probes.
COMPREHENSIVE FUNCTIONALITY – Measures AC and DC Voltage, DC Current, Resistance, Temperature, Audible Continuity and Diode/Transistor Verification Mode.
Measures:
- AC and DC Voltage
- DC Current
- Resistance
- Temperature
- Audible Continuity
- Diode/Transistor Verification Mode.
AC Voltage (Accuracy): 200V, 600V (±2%)
DC Voltage (Accuracy): 200mV (±0.5%), 2V (±0.8%), 20V (±0.8%), 200V (±0.8%), 600V (±0.8%)
AC Current (Accuracy): No
DC Current (Accuracy): 2mA (±1%), 20mA (±1%), 200mA (±1.2%), 10A (±2%)
Resistance (Accuracy): 200Ω, 2kΩ, 20kΩ, 200kΩ (±0.8%), 2MΩ (±1.2%)
Capacitance (Accuracy): No
Temperature (Accuracy): Range; -40°C-1000°C, (±1% up to 400°C), (±2% over 400°C)
Frequency (Accuracy): No
Duty Cycle: No
Continuity Audible: Yes
Diode Test: Yes
Transistor Test: Yes
High-Impact Rubber Case: Yes
Digits x Height: 6 x 12mm
Low Battery Indicator: Yes
Battery (Supplied): 1 x 9V
Integral Stand: Yes
Size (L x W x D): 140 x 70 x 35mm
Weight: 260g
Conformity: IEC 1010
